Pot Magnet for Fishing

Search Magnets

Generally our searching magnet is composed of an outer round cup steel  and a ring neodymium magnets inside with a hole in the centre or a disc magnets, which has been broadly applied into fishing application.

The inner magnet of cup magnets could form a special magnetic circle with the the housing steel when putting it on an ferrous material surface, which is much be strongger than the the magnet self can do. At the same time, the outer cup steel can prevent the inside magnets from damaged or crushed. In some of applications, it can be filled with Epoxy between the cup steel and the magnet to stop some iron dust adsorbed into the gap.

Please find more specifications as showing as bellows.  Also your special designs could be avaiable for us.

In case any question or needs about searching magnets, please feel free to contact us!

Loaf Magnet

Loaf Magnet is formed to be useful for our customers' U-shuttering system , which make many adaption applications available.  The strong magnetic force are compressed into a small steel box. After magnets assemblied, the spare space was fulfilled with black epoxy material to resist dust. Also it could keep the inside magnets damage from concrete and  much longer working life.

At present,our company already helped our customers to design and operate two types of loaf magnets with 350kgs and 900kgs adhesive force.

These magnets could perform as well as Ratec shuttering magnets, but it's only charged much lower cost.

Please kindly inform us your requirements and we would like to get you back asap.

3500kgs Precast Concrete Magnet from China Shuttering Magnets Manufacturer

Type: EH-3500
Pulling Force: 3500kgs adhesive force Net Weight: 7.2kgs

Dimension：L250x84x49 mm  M10 thread

Original: E&H (Ningbo) Magnetics

Material: strong neodymium magnets and steel
The Shuttering Magnets Could be easily adapt to your edge formwork by screwing or welding. The basic magnet box could also be constructed by customer needs. With this Magnet boxes, wooden or steel formworks can be safely fixed to Steel models or Tables.

Compared to the old site-cast model, the new precast is filled with plenty of advantages. Due to these brilliant performances, many construction companies are adapting it as their new working method from Europe, Southern America to UAE, India and now spreads to China as well. The product is delivered with integrated high-performance magnets with forces from 450 to 3500 kg. Integrated threads can be used to adapt special formwork constructions to the Magnets.
Established in 2006, E&H MAGNETICS always devotes to neodymium magnets & magnetic assemblies manufacturing and exporting.  Refer to this item as a precast concrete construction accessories, we are an original shuttering magnets manufacturer and supplier in China. So far, our magnetic formwork system already exported successfully to Australia, Germany, Russia, Island, Dubai ,Indian Market and ect.



Magnetic Joint Ball

 Magnetic Joint Ball

Magnetic Ball Joint is a kind of magnetic device, assemblied with a super strong neodymium cylinder magnet and a steel round ball. The above ball could be on turning around of 360° rotation on a 180° axis. This holding magnetic assembly used to apply in 3D printer, cameras, light fixtures and other device applications.

Our factory, E&H (Ningbo) Magnetic, could offer a wide range of specifications for this joint ball magnet with chrome plated brass material body and Ni-coated ball. Also other required material and size can be fulfilled as per customers demands.



Ball with inner thread M 4/3,5 mm deep without thread IG on the rear.




Please kindly contact us for further information about this magnetic ball joints.
Key Words: Magnetic Joint Ball, Joint Ball Magnet, Neodymium Magnet Assembly

1000kgs Shuttering Magnets for Concrete Formwork

Specifications: L200x50x25 mm

Adhesive Force: Over 1000kgs

Application: Precast Concrete Construction

Since 2006, E&H MAGNETICS has been contributed to neodymium magnets & magnetic assemblies manufacturing and exporting. Owing to the past rich market and production experience, our company started to design & offer shuttering magnets for concrete construction for our Germany customer.

The shuttering magnet is assemblied with very strong neodymium magnets ans steel parts. Due to the powerful magnet and special design, the magnetic assembly is filled with over 1000kgs pulling force.

Usually it's applied into the shuttering magnets (www.neodymium-magnete.com)with a covering steel box to control the force with a push/ pull button. Also this kind of holding magnets could be available in inserting into the plateform directly. The question is the worker needs to release the magnets out by a long steel sticker after the project finished.

Refer to the magnetic box for shuttering system, we are fulfilled with four types of precast concrete magnets as bellows.

Name	Specification	Coating	Net Weight (KGS)	MOQ （sets）	Pulling Force (KGS)
EH-450	450kgs force L170x60x40mm	Black oxidation treatment	1.8	200	450kgs
EH-900	900kgs force L280x60x40mm	same as	2.7	200	900kgs
EH-1800	1800kgs force L320xW120xH60mm	same as	7.0	100	1800kgs
EH-2100	2100kgs force L320xW120xH60mm	same as	7.8	100	2100kgs
Material: Sintered NdFeB Magnet and Steel      H.S.CODE: 8505119000

Also we could offer 650kgs, 1350kgs,1800kgs and 3000kgs shuttering magnets as per our customers' requirements.

450kgs Shuttering Magnet

Type: EH450
Pulling Force: 450kgsNet Weight: 1.8 kgsCoating: Special Black Epoxy plating or galvanized
Original: E&H (Ningbo) Magnetics
Material: Permanent Magnet and Steel Box
Dimension: L 170mm, B 60mm, H1 40mm, H2 69mm, H3 79mm
Names: Permanent Shuttering Magnets/ Magnetic Formwork System/Precast Concrete Magnet System/ Permanent Magnet Formwork/ Magnet SystemDescription: The Shuttering Magnets Could be easily adapt to your edge formwork by screwing or welding. The basic magnet box could also be constructed by customer needs. With this Magnet boxes, wooden or steel formworks can be safely fixed to Steel models or Tables.

The product is delivered with integrated high-performance magnets with forces from 450 to 2100 kg. Integrated threads can be used to adapt special formwork constructions to the Magnets.

450kg Block Magnets for Magnetic Formwork System

Magnet Size: L100x50x25 mm

Adhesive Force: Over 450kgs

Application: Wide range of formwork constructions to fix the plateform.

This type block magnet is assemblied with very strong neodymium magnets ans steel parts. Due to the powerful magnet and special design, the magnetic assembly is filled with over 450kgs pulling force.

Usually it's applied into the shuttering magnets (www.neodymium-magnete.com)with a covering steel box to control the force with a push/ pull button. Also this kind of holding magnets could be available in inserting into the plateform directly. The question is the worker needs to release the magnets out by a long steel sticker after the project finished.

As a professional magnetic assemblies designer and manufacturer, we,E&H MAGNETICS,have helped and designed many types of precast concrete magnets for our customers from all over the world, such as 350kgs U shape shuttering magnets, 450kgs shuttering magnet, 650kgs magnet box, 900kgs magnetic formwork system, 1800kgs as well as 2100kgs precast concrete magnet.

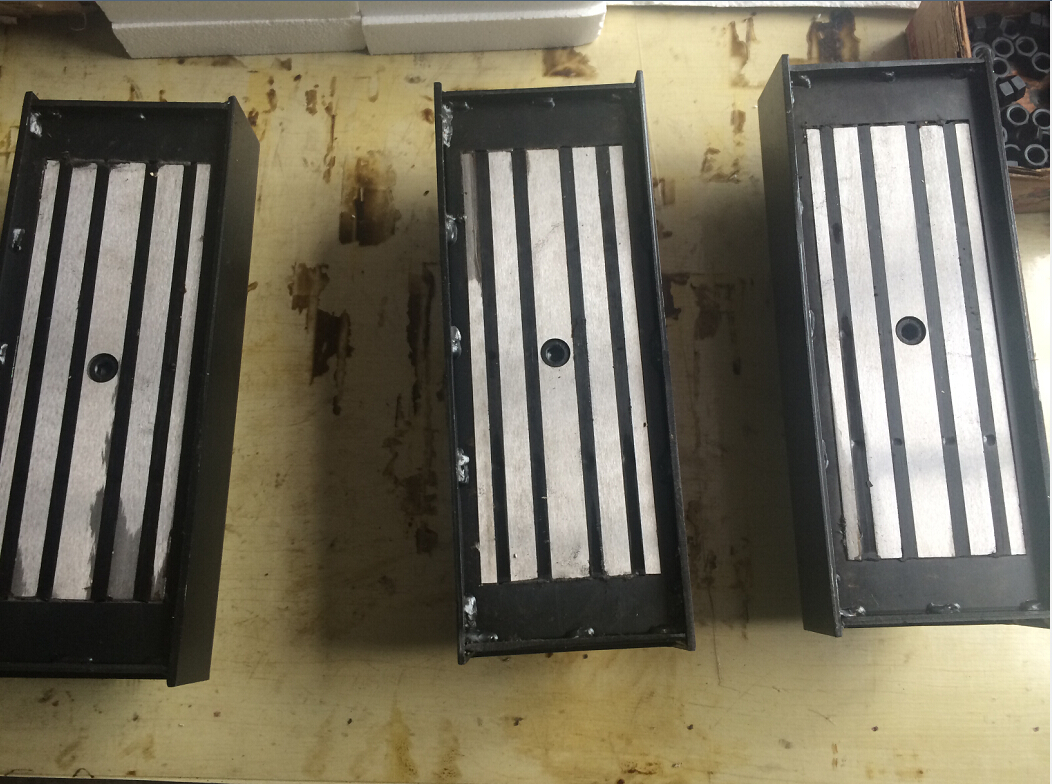

2100kgs Shuttering Magnets

2100kgs Shuttering Magnets are designed to fix the anchors with the steel formworks in couples. It's assembled with steel and strong neodymium magnets. The 2100kgs shuttering magnet is very popular in the application of precast concrete construction.

Our company, E&H (Ningbo) Magnetics Co.,Ltd., is a professional magnets and magnetic assemblies manufacturer in Ningbo of China. Since 2010, we start to help our Germany customers to design and produce this kind of magnetic formwork system.  So far, our factory can suppy bulks of 450kgs shuttering magnet, 900kg magnetic box, 1800kgs precast concrete magnet, 2100kgs magnetic shuttering system, 3000kgs Bottom Magnets. Meanwhile, other kind of special specification also could be offered as per customers designs.

Our 2100kgs shuttering magnets are strictly suspect to the design and could reach over than 2100kgs magnetic fulling force.

Obviously, from the computer screen, you can tell that the pulling force already hits on 2130.64kgs.

In the past several years, our company are fulfilled with lots of experience on this kind of shuttering magnets. It's available for us to design and produce items according to our customer requirements.



Also welcome to visit our website for more details: www.neodymium-magnete.com.  Or directly send us your requirements to info@eh-magnets.com

Magnetic Chamfer Strip

Magnetic Chamfer Strips used to be applied in steel concrete construction system for fixing on the exact position, which is composed of Steel, cast-in super neodymium magnets and molding compressed rubber.

Trapezoidal Magnetic Steel Chamfer

These series of rubber magnetic

Steel chamfer are designed to

create edges on coner and faces

of concrete wall panels and small

concrete items. Compared to full-in

Steel Magnetic Chamfer,the rubber

 magnetic strip is much lighter and

easier to move, while in the same

function. Currently,our factory,E&H

(Ningbo) Magnetics, already

developed trapezoial shape and

triangle shaped reveal chamfer

magnet to meet customers needs.

All the specifications could be custom made.Different length is also available  until 3 meters or even longer
as requirements.

Features:

• Magnetic encased in steel with high adhesive power.
• Won't pull out under normal use
• No open grooves to fill with the concrete.
• Custom Specification is welcomed
• 50% magnet, 100% magnet, 1 side and 2 sides Magnetic Steel chamfer is available.

Magnetic Welding Fixture

Welding Magnet is sandwiched between two steel plates for added strength. Ideal for holding ferrous metals at fixed angles, the unique design provides fixed 180º, 90º, 75º, 60º, 45º and 30º angles. Painted surface prevents rust. They are designed for fast and accurate holding of ferrous metal for welding and assembly jobs.

Specifications:
· Strong, Powerful Magnet Riveted into Durable Steel Housing
· Use for Welding, Soldering, Assembly, and Many Other Applications
· Holds Work at 180º, 90º, 75º, 60º, 45º and 30º angles. Freeing Up Hands to Concentrate on Work
· Use as a Floater to Separate Steel Plates
· Excellent for Holding and Positioning Pipe and Other Hard-to-Handle Parts

Magnetic Attractor

Magnetic Attractor

★ Component Part: Stainless steel body non-responsive to magnets plus high quality and high performance materials.

Model	Specifications	Ø	L	Ø1	L1	Max operation temperature(℃)
PMPb	22X250	22	250	52	330	<80
PMPb	22X270	22	270	52	340	<80
PMPb	22X350	22	350	52	430	<80
PMPb	22X450	25	450	52	530	<80
PMPb	25X350	25	350	55	430	<80
PMPb	25X400	25	400	55	480	<80
PMPb	25X500	25	500	55	580	<80
PMPb	32X250	32	250	62	330	<80
PMPb	32X350	32	350	62	430	<80
PMPb	32X400	32	400	62	480	<80
PMPb	32X500	32	500	62	580	<80

★ Features:This attractor has strong permanent magnet power,can attract irons/steel pieces or iron/steel substances onto its lower end or around itself.This attractor can allure iron/steel pieces or iron substances in liquids,in powder or among grains and/or granules,such as attracting iron substances from electroplating bath, separating iron dusts,iron dhips,and iron filings from lathes,attracting small iron needles and pieces fallen on the ground or separating iron/steel things from other materials.

★ Application:Put the attractor into the area or container or bath where there are iron/steel pieces or substances,and they will gather to the lower end or round itself.Then put the attractor into the recovery tray,and pull the handle up,and some of the iron and/or steel substances will fall into the tray,the rest might be retained by the blocking piece,but they will fall into the recovery tray.Position of the blocking piece may be adjusted as need be,reset the attractor after all iron pieces and/or iron substances have fallen into the recovery tray.Reset this attractor and you can apply it again and again and the magnetic power will never weaken.
